Approx Price:
₹1,300,000.00
Working Temp: Normal to 120°c Can Be Adjust
Finished Dosage Form: Granules
Application Fields: Pharmaceutical\Food\Chemical
Main Functions: Powder\Granules Drying
Heating Type: Electrical or Steam
Capacity of Dryer: 120 / 150 Kgs at 0.6 Kg / Lt Bulk Density
Working Capacity of Product Container: 200 Liters
TECHNICAL SPECIFICATIONS – 120 KG FLUID BED DRYER | |
| Description | JSKFBD-120 |
| Capacity of Dryer in Kgs at 0.6 Kg / Lt Bulk Density | 120-150 |
| Working Capacity of Product Container in Liters | 200 |
| Total Volume of Product Container in Ltrs | 400 |
| Blower Motor HP | 15 H.P. |
| Heating Capacity in KCL / HR | 38700 |
| Length (mm) | 2480 |
| Width (mm) | 1400 |
| Height with Motor (mm) | 2950 |
SALIENT FEATURES | |
| Design is cGMP – Current Good Manufacturing Practices compliance. | |
| All contact parts AISI 316 & non contact parts AISI 304. | |
| Single piece construction with Integrated retarding expansion chamber cum filter bag housing | |
| Batch type dryer with available capacity 30 kg to 500 kg. Batch size | |
| Pneumatic Sealing of Filter Bag and Product container by inflatable silicon rubber tube. | |
| Exhaust air blower with dynamic balance fan. | |
| Built in Explosion vents and isolation valve protect equipment. | |
| Automatic Temperature controls for Inlet Air and Process cycle time controls. | |
| Washable filter media. | |
| Auto pneumatic filter bag shacking system. | |
| Sampling pot on product container. | |
| Electric and Pneumatic controls panel. | |
SAFETY FEATURES | |
| Automatic Temperature & controls, Process cycle controls. | |
| Explosion flap ensure at retarding chamber. | |
| Safe earthling system for static current. | |
| Air pressure switch installed to ensure pressure is in limit. | |
| Overload relay Protection and Emergency stop button. | |

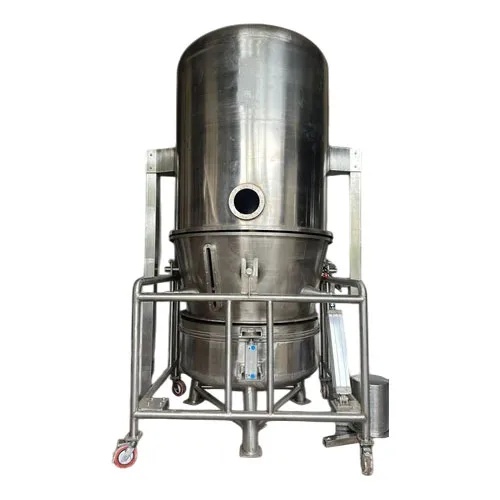

The Fluid Bed Dryer 120kg is a cutting-edge machine designed to efficiently dry granules, powders, and other materials in industries such as pharmaceuticals, chemicals, food, and more. Known for its robust performance, energy efficiency, and user-friendly operation, this dryer is the ideal solution for uniform drying and process optimization.
High Drying Efficiency: The fluidization process ensures even distribution of hot air, resulting in quick and uniform drying of materials.
Capacity: With a working capacity of 120kg, it is ideal for medium-scale production processes.
Advanced Heating Options: Equipped with versatile heating systems, including electric, steam, or gas-fired options, the dryer caters to diverse industry requirements.
Precision Controls: Comes with a digital PLC-based control system for temperature regulation, air velocity, and drying time adjustments.
Stainless Steel Construction: Made with SS304/SS316 stainless steel, the dryer ensures superior durability, corrosion resistance, and compliance with GMP (Good Manufacturing Practices) standards.
Efficient Air Filtration System: Features HEPA filters and multi-stage filtration to maintain air purity, preventing contamination of materials during the drying process.
Energy Efficient Design: Optimized airflow and insulation reduce energy consumption, making it an eco-friendly choice for industrial operations.
Ease of Operation & Maintenance: User-friendly interface and ergonomic design make it simple to operate and clean, minimizing downtime and maintenance costs.
