Approx Price:
₹250,000.00
Capacity: 1000 Liters
Material of Construction: SS 304 / SS 316 (as per requirement)
Jacket Material: SS 304
Inner Shell Thickness: 3 mm
Jacket Thickness: 2 mm
Insulation: Mineral wool / Polyurethane Foam (PUF)
Outer Shell Thickness: 2 mm (for insulation protection)
Technical Specification |
|
| Parameter | Specification |
| Capacity | 1000 Liters |
| Material of Construction | SS 304 / SS 316 (as per requirement) |
| Jacket Material | SS 304 |
| Inner Shell Thickness | 3 mm |
| Jacket Thickness | 2 mm |
| Insulation | Mineral wool / Polyurethane Foam (PUF) |
| Outer Shell Thickness | 2 mm (for insulation protection) |
| Design Pressure | Jacket: Up to 4 bar (adjustable based on process requirements) |
| Temperature Range | -20°C to 150°C (process-dependent) |
| Surface Finish | Mirror finish / Matte finish (as per requirement) |
| Inlet / Outlet Size | As per customer specifications (standard sizes available: 1″, 1.5″, 2″) |
| Manhole | 450 mm Diameter with Hinged Lid |
| Agitator | Optional – Paddle, Anchor, or Propeller type (as required) |
| Nozzles | For inlet, outlet, vent, drain, and thermometer |
| Heating / Cooling Media | Steam, Hot Water, or Chilled Water (as per requirement) |
| Mounting | Skid-mounted or Leg-supported |
| Pressure Testing | 1.5 times the design pressure |
| Compliance Standards | cGMP, ASME, FDA |

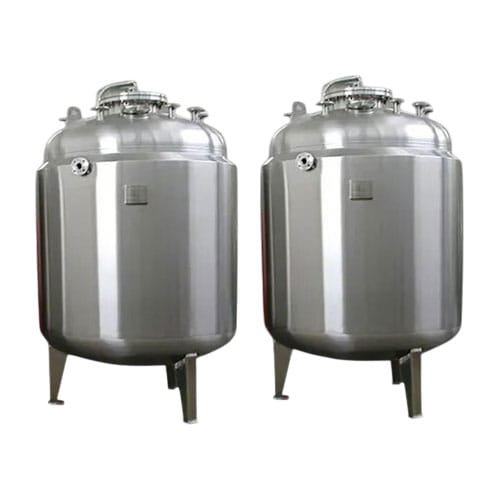

Our 1000 LTR SS Jacketed Storage Tank is a robust and versatile solution designed to meet the high-performance requirements of various industries, including pharmaceutical, chemical, food, beverage, cosmetics, and water treatment. Crafted with precision, this storage tank combines advanced engineering with premium-grade materials to ensure durability, efficiency, and compliance with international standards like cGMP, ASME, and FDA.
High-Quality Construction: Built using Stainless Steel 304 or 316, ensuring superior corrosion resistance and hygiene. Designed for longevity, even under demanding conditions.
Efficient Heat Transfer with Jacket: The jacket is made from SS 304 and supports heating or cooling processes using steam, hot water, or chilled water. Ideal for maintaining precise temperature ranges from -20°C to 150°C.
Durable Insulation: Insulated with mineral wool or polyurethane foam (PUF) to prevent heat loss or condensation. The outer shell is made of stainless steel with a thickness of 2 mm for added protection.
Customizable Design: Available with various nozzle sizes for inlet, outlet, vent, drain, and thermometer connections. Optional agitator systems, including paddle, anchor, or propeller types, for enhanced mixing capabilities.
User-Friendly Operation: Includes a 450 mm diameter manhole for easy cleaning and maintenance. Offered in skid-mounted or leg-supported designs for ease of installation.
High Safety and Performance Standards: Withstands a design pressure of up to 4 bar for the jacket. Undergoes rigorous pressure testing at 1.5 times the design pressure for safety assurance.
Hygienic Surface Finish: Available in mirror finish or matte finish for easy cleaning and reduced contamination risk.
This tank is the perfect choice for industries requiring precise temperature control and hygienic storage or processing of liquids. Common applications include:
Whether you’re in pharmaceuticals, food processing, or any other industry, our 1000-liter jacketed tank is the ideal choice for your storage and processing needs. Contact us today to discuss your requirements and get a customized solution tailored to your process specifications.
Boost your operational efficiency and ensure product integrity with our premium-quality SS Jacketed Storage Tank!
