Approx Price:
₹450,000.00
Storage Capacity: 50 L TO 20,000 LITER
Tank Orientation: Vertical
Tank Type: Bottom Dish End ,Top Flat End with Motor and Gear box
Usage/Application: Mixing or Blending Material
Mixing Material: Chemicals / Oils / Lubricant / Liquid Syrup / Sugar Syrup / Wax Melting /Engine Oil
Material: Stainless Steel SS304 and SS316

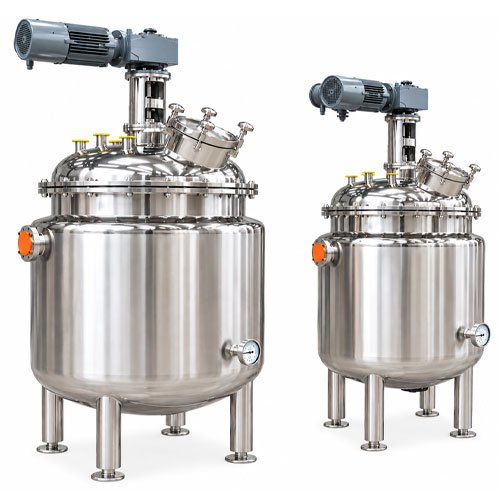

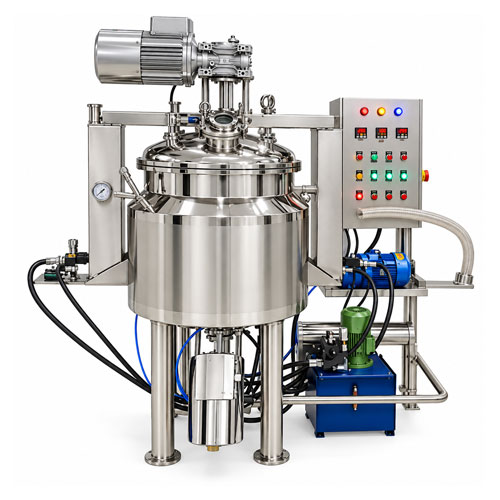

Stainless Steel Mixing Vessel – Technical Specifications |
||||
| Tank Capacity | 100 Liters | 250 Liters | 500 Liters | 1000 Liters |
| Tank Type | Bottom Dish End, Top Flat End | Bottom Dish End, Top Flat End | Bottom Dish End, Top Flat End | Bottom Dish End, Top Flat End |
| Material | Stainless Steel SS304/SS316 | Stainless Steel SS304/SS316 | Stainless Steel SS304/SS316 | Stainless Steel SS304/SS316 |
| Capacity | 100 Liters | 250 Liters | 500 Liters | 1000 Liters |
| Tank Dimensions (Approx.) | 600mm (D) x 900mm (H) | 800mm (D) x 1200mm (H) | 1000mm (D) x 1500mm (H) | 1200mm (D) x 1800mm (H) |
| Motor Type | Electric Motor (Single Phase / 3-Phase) | Electric Motor (Single Phase / 3-Phase) | Electric Motor (Single Phase / 3-Phase) | Electric Motor (Single Phase / 3-Phase) |
| Motor Power | 0.75 kW / 1.5 kW | 1.5 kW / 2.2 kW | 2.2 kW / 3 kW | 3 kW / 5 kW |
| Gearbox Type | Worm Gearbox | Worm Gearbox | Helical Gearbox | Helical Gearbox |
| Speed (RPM) | 60-150 RPM | 60-120 RPM | 60-100 RPM | 50-80 RPM |
| Agitator Type | Anchor, Paddle, or Turbine | Anchor, Paddle, or Turbine | Anchor, Paddle, or Turbine | Anchor, Paddle, or Turbine |
| Agitator Motor Power | 0.5 kW | 1 kW | 1.5 kW | 2 kW |
| Max Pressure | 3 Bar | 3 Bar | 3 Bar | 3 Bar |
| Tank Wall Thickness | 3 mm | 4 mm | 5 mm | 6 mm |
| Lid Type | Removable Flat Lid with Seal | Removable Flat Lid with Seal | Removable Flat Lid with Seal | Removable Flat Lid with Seal |
| Material Finish | Mirror or Matte (Polished / Brushed) | Mirror or Matte (Polished / Brushed) | Mirror or Matte (Polished / Brushed) | Mirror or Matte (Polished / Brushed) |
| Optional Features | Heating Jacket, Insulation, Lid with Port | Heating Jacket, Insulation, Lid with Port | Heating Jacket, Insulation, Lid with Port | Heating Jacket, Insulation, Lid with Port |
| Temperature Range | Up to 100°C | Up to 100°C | Up to 100°C | Up to 100°C |
