Working Capacity: 1000 Liters
Total / Gross Capacity: Approx. 1200 Liters
Tank Orientation: Vertical
Tank Type: Jacketed, Heated & Agitated
Application: Sugar Melting / Sugar Syrup Preparation
Product Contact Parts: SS304 / SS316
Approx Price:

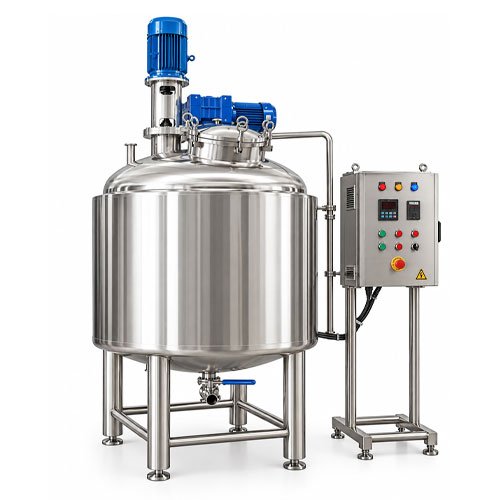

Sugar Melting Tank
₹540,000.00
Get Latest Price
Category: Mixing Tank
Get Quote
Request Call Back
Sugar Melting Tank Technical Specifications |
||
| Category | Parameter | Technical Specification |
| General | Equipment Name | Sugar Melting Tank |
| Working Capacity | 1000 Liters | |
| Total / Gross Capacity | Approx. 1200 Liters | |
| Tank Orientation | Vertical | |
| Tank Type | Jacketed, Heated & Agitated | |
| Application | Sugar Melting / Sugar Syrup Preparation | |
| Tank Dimensions | Tank Diameter | Approx. 1100 mm |
| Straight Shell Height | Approx. 1100 mm | |
| Overall Tank Height | Approx. 1800–2100 mm | |
| Tank Bottom | Dished / Conical Bottom | |
| Shell Thickness | 3–4 mm | |
| Bottom Thickness | 4–5 mm | |
| Material of Construction | Product Contact Parts | SS304 / SS316 |
| Recommended MOC | SS304 | |
| External Structure | SS304 / MS with suitable finish | |
| Surface Finish | Internal Mirror / Food Grade Finish | |
| Heating System | Heating Method | Steam / Hot Water / Electric |
| Jacket Type | Full / Partial Jacket | |
| Jacket MOC | SS304 | |
| Jacket Design Pressure | As per heating utility | |
| Insulation | Mineral Wool / Ceramic Wool | |
| Cladding | SS304 Sheet | |
| Agitation | Agitator Type | Paddle / Propeller / Anchor |
| Agitator Shaft | SS304 / SS316 | |
| Impeller | SS304 / SS316 | |
| Agitator Speed | Approx. 30–80 RPM | |
| Motor | Approx. 2 HP | |
| Gearbox | Helical / Worm Gearbox | |
| Speed Control | VFD | |
| Temperature | Operating Temperature | Typically 60–90°C |
| Design Temperature | Approx. 100°C | |
| Temperature Sensor | RTD PT100 | |
| Temperature Indicator | Digital Temperature Controller | |
| Top Arrangement | Top Cover | Hinged / Bolted Openable Lid |
| Manhole | Approx. 400–500 mm | |
| Sugar Charging Port | Provided | |
| Water / Liquid Inlet | 1½”–2″ | |
| Nozzles | Product Outlet | 1½”–2″ TC / BSP |
| Drain Outlet | 1″–1½” | |
| CIP Connection | 1½”–2″ TC | |
| Vent | 1″–1½” | |
| Overflow | As required | |
| Sealing | Mechanical Seal | Food Grade Mechanical Seal |
| Gasket Material | Food Grade Silicone / EPDM | |
| Support | Tank Support | SS304 Legs |
| Number of Legs | 4 Nos. | |
| Leg Bracing | SS304 | |
| Adjustable Feet | Optional | |
| Safety & Controls | Control Panel | SS304 Electrical Control Panel |
| Motor Starter | Included | |
| VFD | Included | |
| Emergency Stop | Provided | |
| Temperature Control | Automatic / Manual | |
| Low-Level Protection | Optional | |
| Cleaning | Cleaning System | CIP Compatible |
| Spray Ball | SS304 / SS316, Optional | |
| Drainability | Full Drainable Design | |
| Utilities | Steam Inlet | As required |
| Steam Outlet / Condensate | Provided | |
| Electrical Supply | 415 V, 3 Phase, 50 Hz | |
| Motor Protection | IP55 or better | |
| Application | Suitable For | Sugar Melting, Sugar Syrup, Beverage, Dairy & Food Processing |
